Aluminium Single Straight Ladder

Width: 390mm

Length: 1m, 2m, 3m, 4m, 5m, 6m

EN131

Material: Aluminium

Introduction

Aluminium Single Straight Ladder

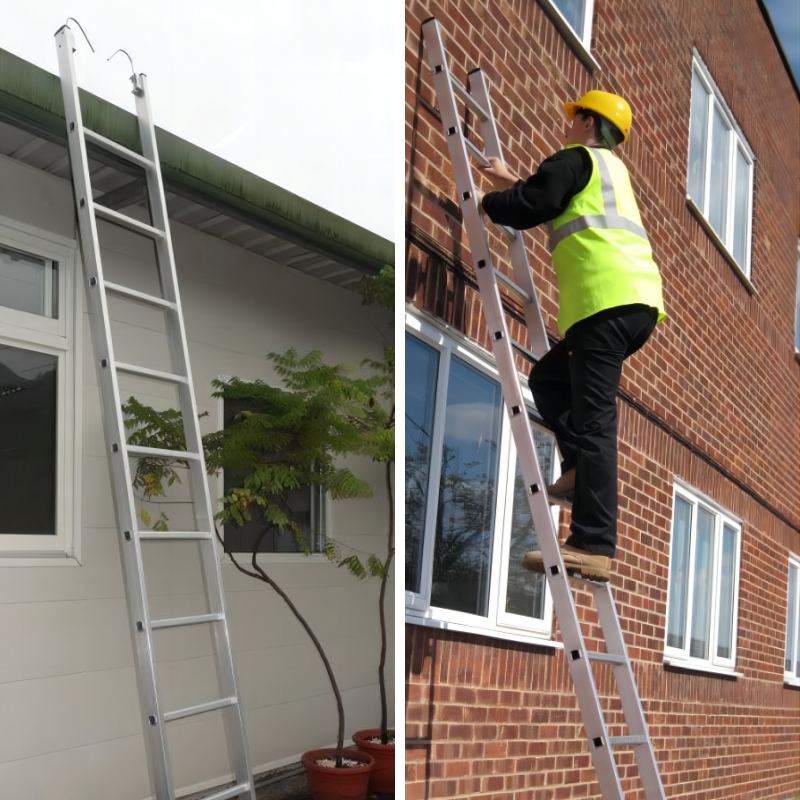

Onward Aluminium Single Straight Ladder is a lightweight and durable solution for safe vertical access on construction sites. Made from high-strength aluminum, it resists corrosion and ensures long-term performance even in harsh environments. Its non-slip rungs and strong side rails provide added safety and stability for users.

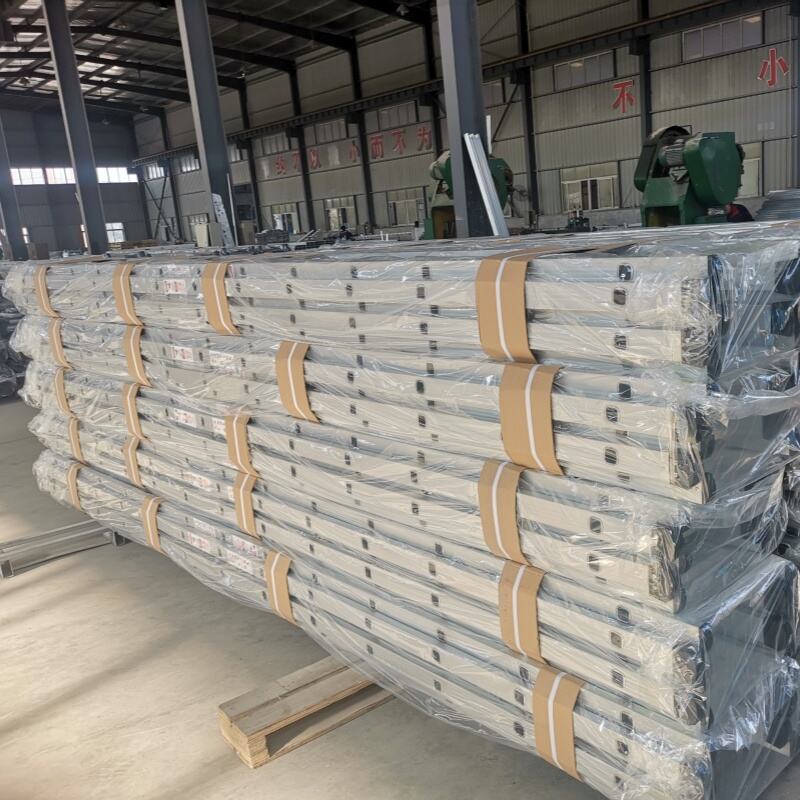

Aluminium Single Straight Ladder (3).jpg

Introduction

Professional aluminum ladder manufacturer & exporter in China, with good quality and competitive prices:

1. 6063-T5 aluminum.

2. Max capacity loading:150 kgs.

3. Features: Light weight,portable, durable ,anti-corrosion,water proof,without pollution,environment-friendly

4. Wide range of usage: construction & building, factory and warehouse,home and garden,decoration. etc.

5. OEM orders & customized designs are warmly welcomed.

Specifications and Parameters

Width	Length	Weight	Material
390mm	2M	2.9	6063 T5 Aluminum 6061 T6 Aluminum
	3M	4.38
	4M	5.75
	5M	7.11
	6M	8.59

Data Sheet

No.of Step	Specification	Material	Thickness (mm)	Spacing between rungs (cm)	Weight KG/PC	Max Load (KG)	Package (PCS/CTN)	Packing Size (cm)
6	Height: 200cm Width: 39cm Square tube	6063 T5 Aluminum	1.2mm	30cm	3	150	5PCS/CTN	2014525
9	Height: 300cm Width: 39cm Square tube	6063 T5 Aluminum	1.2mm	30cm	4.5	150	5PCS/CTN	3014525
12	Height: 400cm Width: 39cm Square tube	6063 T5 Aluminum	1.2mm	30cm	5.9	150	5PCS/CTN	4014525
16	Height: 500cm Width: 39cm Square tube	6063 T5 Aluminum	1.2mm	30cm	7.5	150	5PCS/CTN	5014525
19	Height: 600cm Width: 39cm Square tube	6063 T5 Aluminum	1.2mm	30cm	8.8	150	5PCS/CTN	6014525
