Adjustable Jack is used to leveling the ground or supporting the slab.
Type: Base Jack, U-head Jack, Universal Jack (Solid / Hollow)
OD: M30, M32, M34, M38, M48
Length: 0.4m, 0.6m, 0.75m
Base Plate: 150x150mm, 120x120mm
Material: Q235

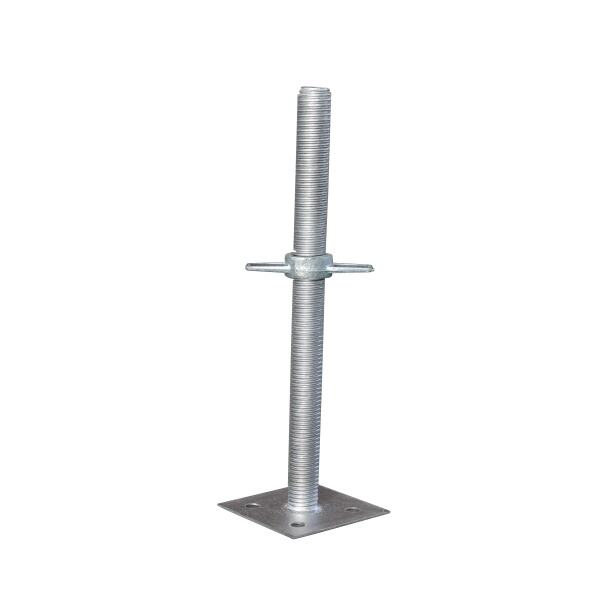

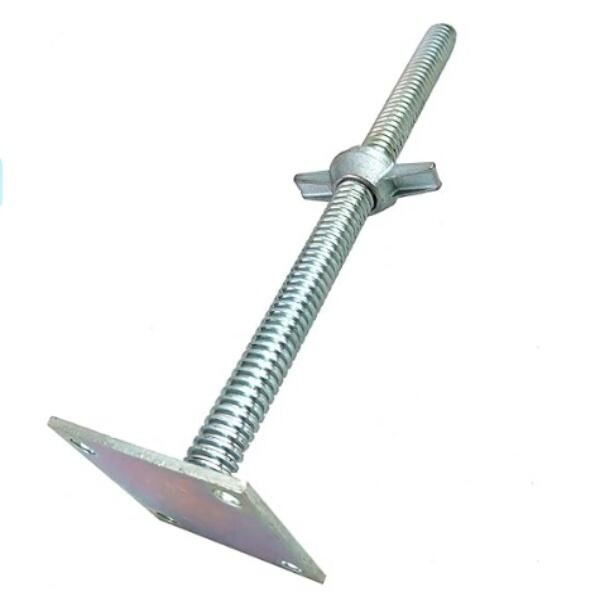

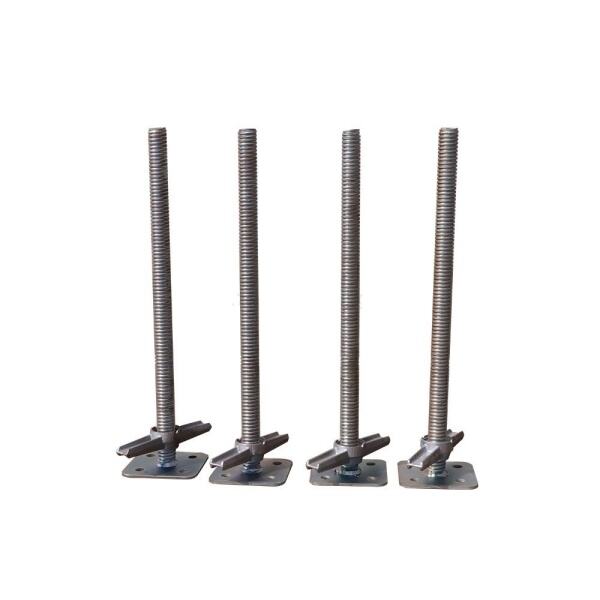

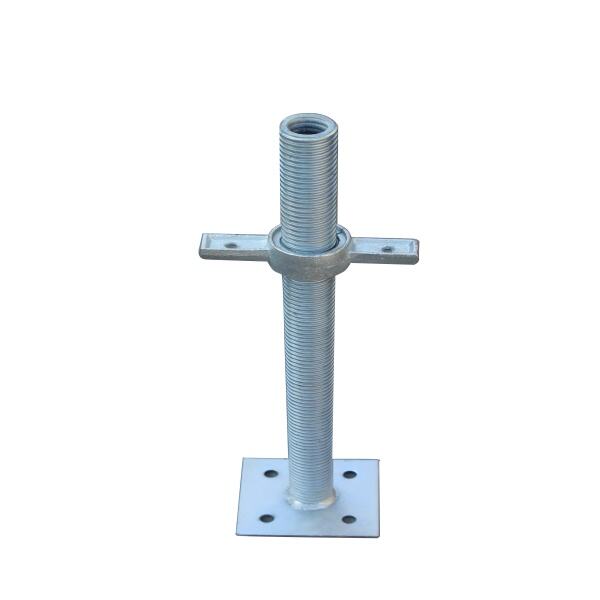

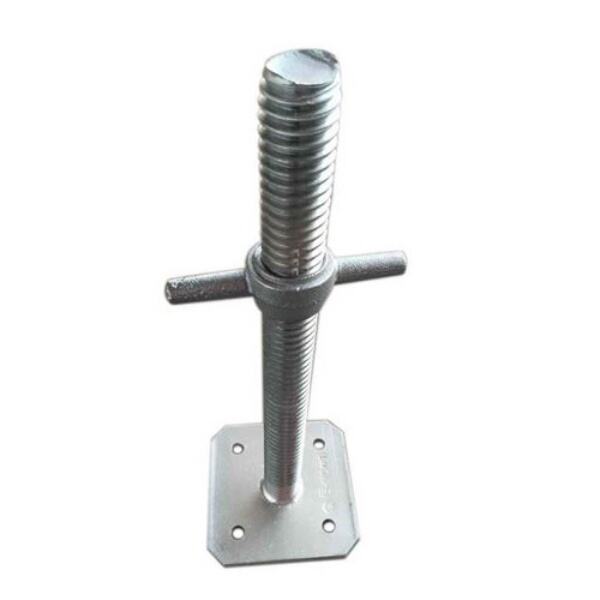

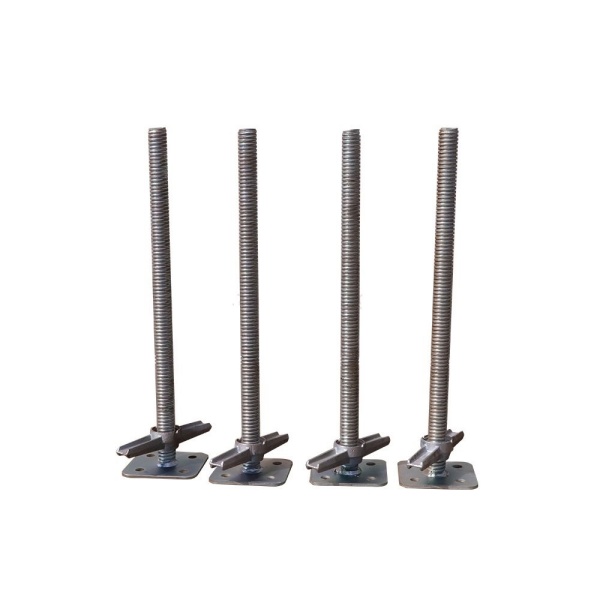

Adjustable Base Jack
Introduction
Adjustable Jack is used to leveling the ground or supporting the slab.
Type: Base Jack, U-head Jack, Universal Jack (Solid / Hollow)
OD: M30, M32, M34, M38, M48
Length: 0.4m, 0.6m, 0.75m
Base Plate: 150x150mm, 120x120mm
Material: Q235
Surface: Galvanized
Standard: EN74
Package: in bundles
Specification
BASE JACK BS EN 74-1: 2005 | |||
Item |
Description |
Plate |
Weight (kg) |
M30 Base Jack, Solid |
φ30mm*0.6m |
120*120mm |
3.58 |
M30 U Head Jack, Solid |
φ30mm*0.6m |
120*150*50mm |
4.08 |
M32 Base Jack, Solid |
φ32mm*0.6m |
120*120mm |
4.12 |
M32 U Head Jack, Solid |
φ32mm*0.6m |
120*150*50mm |
4.51 |
M38 Base Jack, Hollow |
φ38mm*0.6m |
150*150mm |
3.4 |
M38 U Head Jack, Hollow |
φ38mm*0.6m |
120*150*150mm |
3.99 |

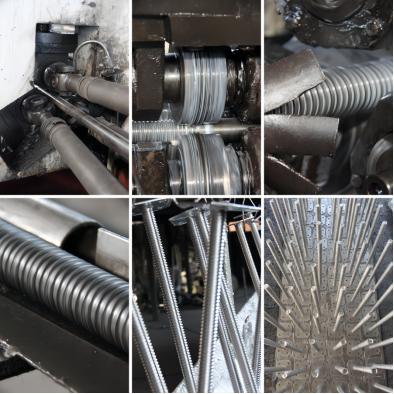

Factory & Production
Frequently Asked Questions (FAQ):
Q: What is the MOQ?
A: 500PCS is available when mixed with other items in 1 full container.

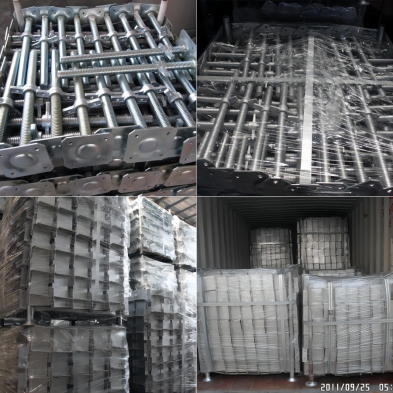

Q: How to do package and loading?
A: Normally it’s packed in bundles and loaded in 40HQ.
Q: What is application situation ?
A: In LNG, Oil & Gas construction site, or whenever there is passageway needed under the scaffolding.
Q: Can you produce as per our size ?
A: Yes ! We can do production as per your requirement. Just share us your loading requirement, length, width and other information.
