240mm 250mm Steel Plank with hook

240x45mm

250x50mm

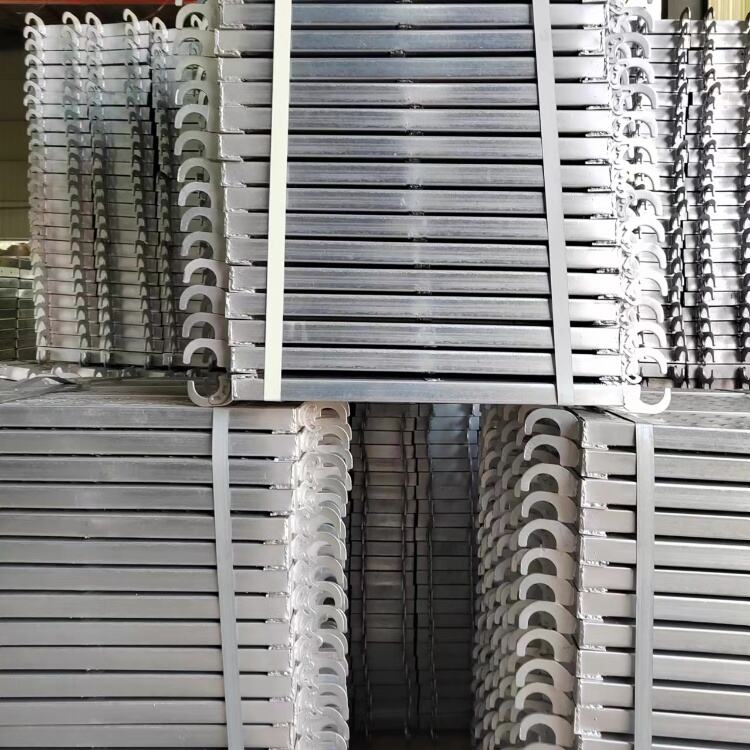

Galvanized Steel Plank with hook

Introduction

Hooked Scaffolding Steel Plank is a galvanized steel platform designed for scaffolding systems, featuring end hooks for secure attachment to scaffold frames. These planks provide superior strength, fire resistance, and longevity, making them ideal for high-load applications and harsh environments.

Specification

Type	W*H	Thickness	Length	Weight
W240	240*45mm	1.5mm	0.9m	5.4
W240	240*45mm	1.5mm	1.2m	6.7
W240	240*45mm	1.5mm	1.5m	8.14
W240	240*45mm	1.5mm	1.8m	9.57
W240	240*45mm	1.5mm	2.1m	10.86
W240	240*45mm	1.5mm	2.5m	12.49
W240	240*45mm	1.5mm	2.07m	10.49
W240	240*45mm	1.5mm	2.57m	12.8
W300	300*50mm	1.5mm	1.5m	9.48
W300	300*50mm	1.5mm	1.829m	12.33
W300	300*50mm	1.5mm	2.0m	11.19
W420	420*45mm	1.5mm	1.5m	13.35
W420	420*45mm	1.5mm	1.829m	16.0
W420	420*45mm	1.5mm	2.0m	18.35
W480	480*45mm	1.5mm	1.2m	11.65
W480	480*45mm	1.5mm	1.5m	14.5
W480	480*45mm	1.5mm	1.8m	17.45
W480	480*45mm	1.5mm	1.829m	17.55
W500	500*50mm	1.5mm	1.2m	12.48
W500	500*50mm	1.5mm	1.5m	15.24
W500	500*50mm	1.5mm	1.8m	18.22
W500	500*50mm	1.5mm	1.829m	18.27
