Adjustable Length: 2.2m ~3.9m
Inner Tube: 48.3mm
Outer Tube: 60.3mm
Material: Q235
Pre-galvanized

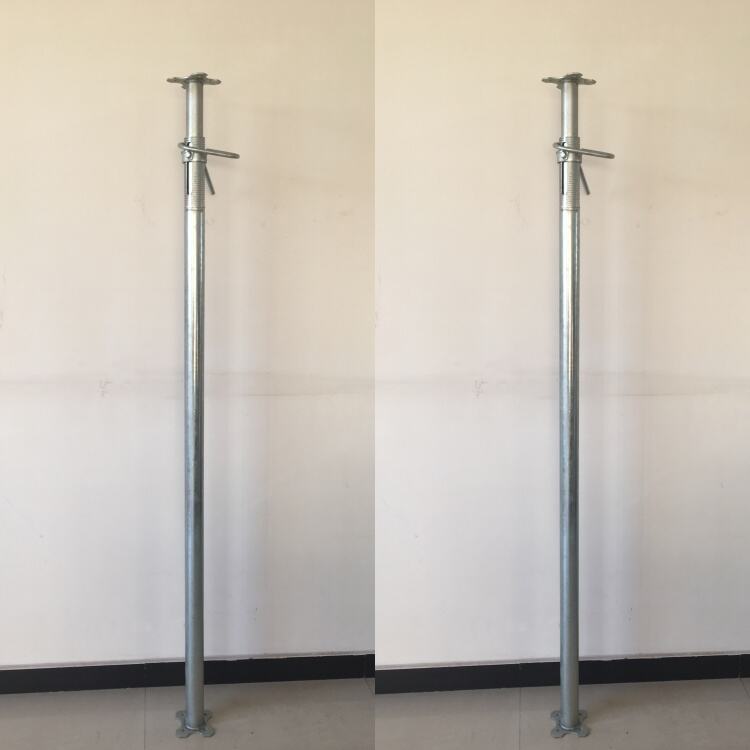

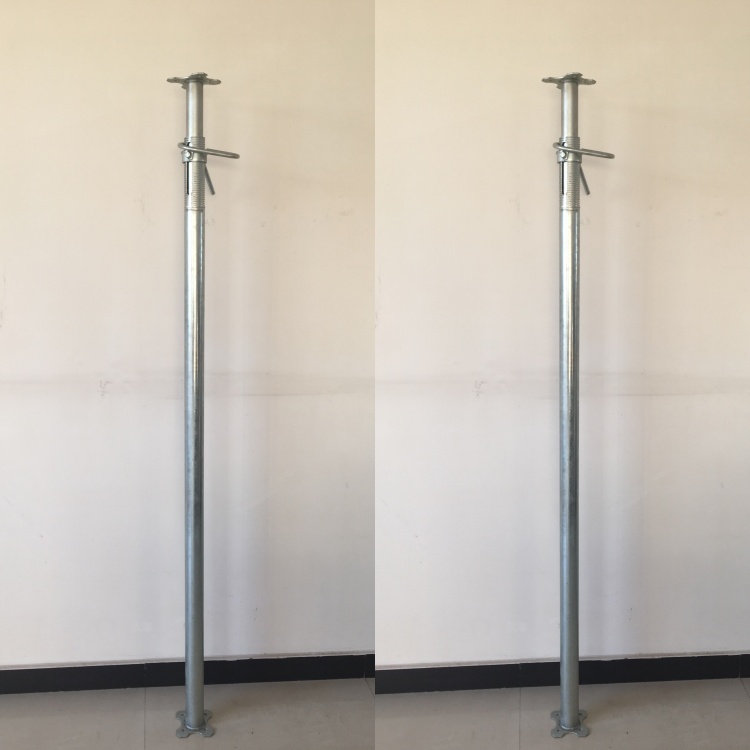

Adjustable Steel Props are temporary steel vertical supporting props consist of inner tube, outer tube, sleeve, lock-pin, top and bottom plates, nuts with handle.
| Features of steel props
1.Adjustable to your desired height
2. Durability for repeated and long-term use
3. Heavy weight bearing and strong load capacity
4. Safety of thick beam and slab support
5. Easy to use
6. Suitable for any construction
| DATASHEET
| Adjustable Steel Prop Specification - Double Ear Nut | |||||
| Model # | Min. Height | Max. Height | Inner Tube Dia. | Outer Tube Dia. | Steel Wall Thickness |
| OI-HSP2.6 | 1.6m | 2.6m | 48.3mm | 60.3mm | 1.6mm ~ 4.0mm |
| OI-HSP3.0 | 1.7m | 3.0m | |||
| OI-HSP3.2 | 1.8m | 3.2m | |||
| OI-HSP3.5 | 2.0m | 3.5m | |||
| OI-HSP3.9 | 2.2m | 3.9m | |||
| OI-HSP4.0 | 2.4m | 4.0m | |||
| OI-HSP4.5 | 2.5m | 4.5m | |||
| OI-HSP5.0 | 2.8m | 5m | |||
| OI-HSP5.5 | 3.5m | 5.5m | |||
| Surface Options: Pre-galvanized, Electro Galvanized, Hot Dipped Galvanized, Painted, Powder Painted | |||||

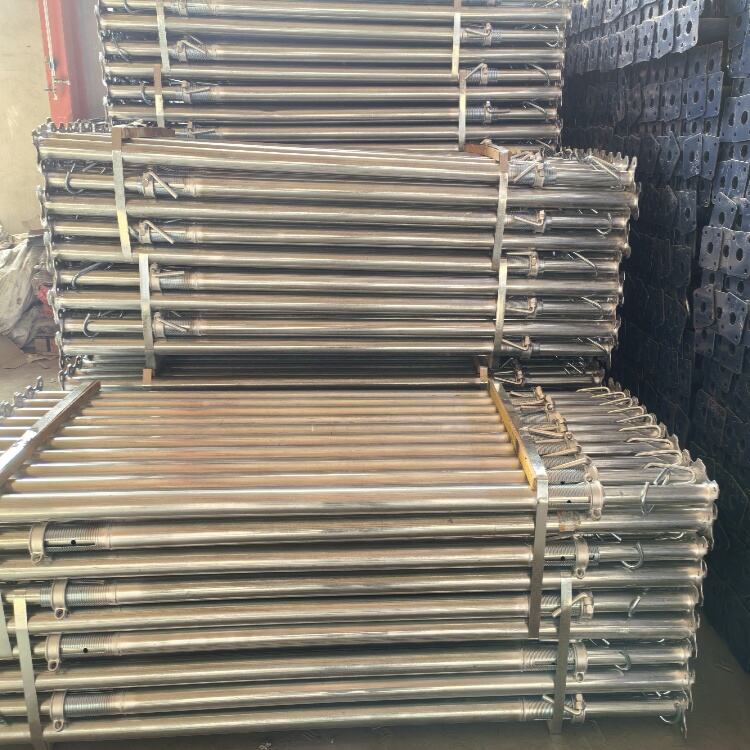

| Production and Package
