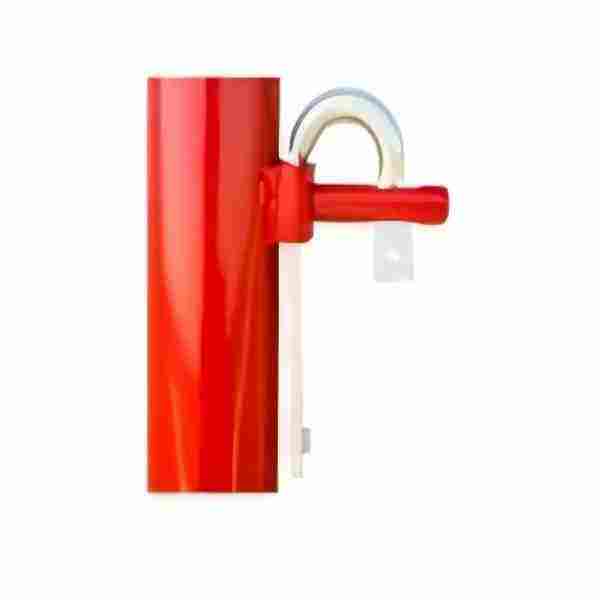

Lock Type: Snap-on, Drop Lock, Flip Lock, Fast Lock, V-Lock, C-Lock, Canadian Lock

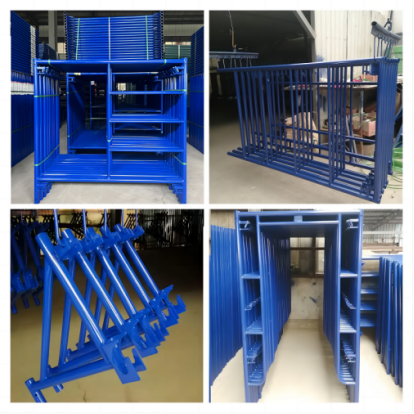

Frame Type: Walk Thru Type, Box Type (Manson), Apartment type, Ladder Type
Main Tube: 42.7*2.4mm
Material: Q235
Surface: Powder Painted
Lock
Lock Type: Snap-on, Drop Lock, Flip Lock, Fast Lock, V-Lock, C-Lock, Canadian Lock
Frame Type: Walk Thru Type, Box Type (Manson), Apartment type, Ladder Type
Main Tube: 42.7*2.4mm
Material: Q235
Surface: Powder Painted

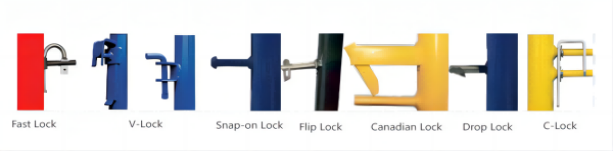

Lock types
Specification
Snap-on Frame | ||
Width X Height |
Type |
Weight / lbs |
3’x 4’ |
Walk Thru Frame |
24.14 |
3’x 5’ |
Walk Thru Frame |
30.3 |
3’ x 6’8” |
Walk Thru Frame |
35.68 |
5’x 7’6” |
Walk Thru Frame |
57.46 |
3’x 8’8” |
Apartment Frame |
47.03 |
3’x 10’8” |
Apartment Frame |
55.52 |
5’x 5’ |
Single Box Frame |
40.84 |
5’x6’8” |
Single Box Frame |
49.26 |
5’x 5’ |
Double Box Frame |
36.61 |
5’x6’8” |
Double Box Frame |
55.08 |
2’x 6’8” |
Ladder Frame |
34.8 |
3’x 3’4” |
Ladder Frame |
22.01 |
5’x 3’4” |
Ladder Frame |
28.5 |
S.O. (Snap-on) Cross Bracing | |||
A |
X |
B |
Weight/lbs
|
5’ |
x |
32” |
10.05 |
7’ |
x |
32” |
12.63 |
10’ |
x |
32” |
10.67 |
5’ |
x |
4’ |
11.11 |
6’ |
x |
4’ |
12.24 |
7’ |
x |
4’ |
13.43 |
8’ |
x |
4’ |
14.68 |
10’ |
x |
4’ |
17.24 |
S.O. (Snap-on) Rails | |
Length |
Weight / lbs |
2' |
2.77 |
3' |
3.67 |
4' |
4.58 |
5' |
5.48 |
7' |
6.38 |
8' |
7.26 |
10' |
8.16 |
Cross Brace | |||
Dimension |
Item |
Dimension |
Surface |
7’x4’ |
Punch-hole Cross Brace |
7’x4’ |
Pre-Galvanzied
|
8’x4’ | |||
8’x4’ |
Double Punch-hole Cross Brace |
7’x3’x4’ |
|
7’x3’x4’ |
Snap-on Cross Brace |
7’x4’ |
|
8’x4’ | |||
10’x4’ | |||

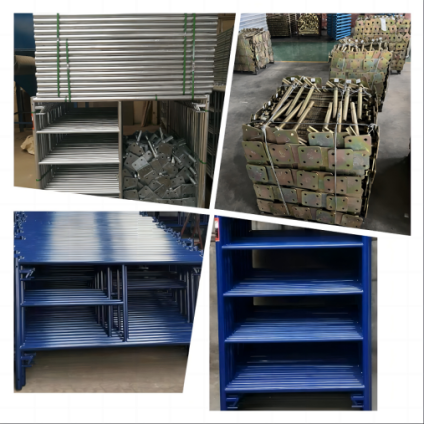

Package and Shipment
Frequently Asked Questions (FAQ):
Q: What is the MOQ?
A: 500PCS is available when mixed with other items in 1 full container.
Q: How to do package and loading?
A: Normally it’s packed in bundles and loaded in 40HQ.
Q: What is application situation ?
A: In LNG, Oil & Gas construction site, or whenever there is passageway needed under the scaffolding.
Q: Can you produce as per our size ?
A: Yes ! We can do production as per your requirement. Just share us your loading requirement, length, width and other information.
