Adjustable Length: 1.8 - 3.2M
Inner Tube : 48.3mm
Outer Tube: 56mm

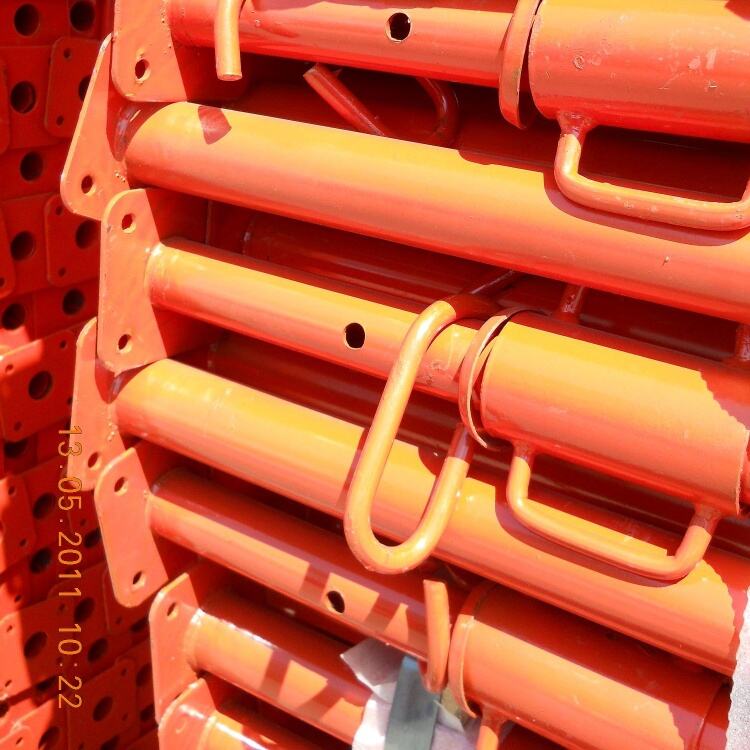

Surface: Painted
Adjustable Steel Props are temporary steel vertical supporting props consist of inner tube, outer tube, sleeve, lock-pin, top and bottom plates, nuts with handle.
| Features of steel props
1.Adjustable to your desired height
2. Durability for repeated and long-term use
3. Heavy weight bearing and strong load capacity
4. Safety of thick beam and slab support
5. Easy to use
6. Suitable for any construction
| DATASHEET
Adjustable Steel Prop Specification - Cup Nut | |||||
Model # | Min. Height | Max. Height | Inner Tube Dia. | Outer Tube Dia. | Steel Wall Thickness |
OI-ITP2.9 | 1.6m | 2.9m | 48.3mm | 56mm | 1.6mm ~ 4.0mm |
OI-ITP3.0 | 1.7m | 3.0m | |||
OI-ITP3.2 | 1.8m | 3.2m | |||
OI-ITP3.5 | 2.0m | 3.5m | |||
OI-STP2.9 | 1.6m | 2.9m | 40mm | 48.3mm | 1.6mm ~ 4.0mm |
OI-STP3.0 | 1.7m | 3.0m | |||
OI-STP3.2 | 1.8m | 3.2m | |||
OI-STP3.5 | 2.0m | 3.5m | |||
Surface Options: Pre-galvanized, Electro Galvanized, Hot Dipped Galvanized, Painted, Powder Painted |

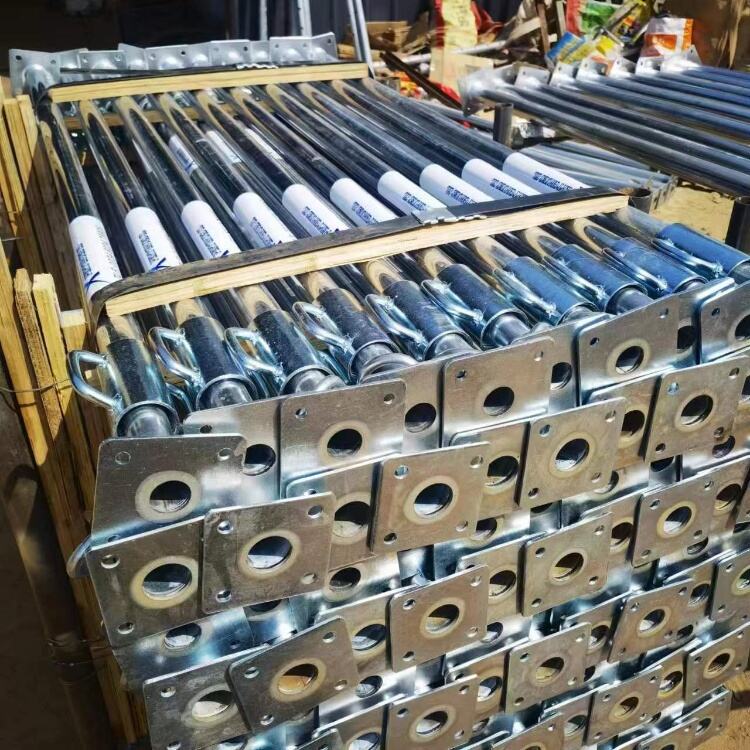

| Production and Package
