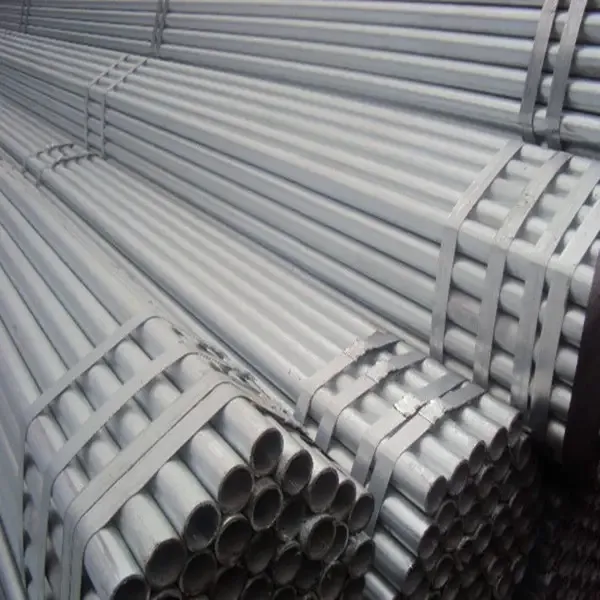

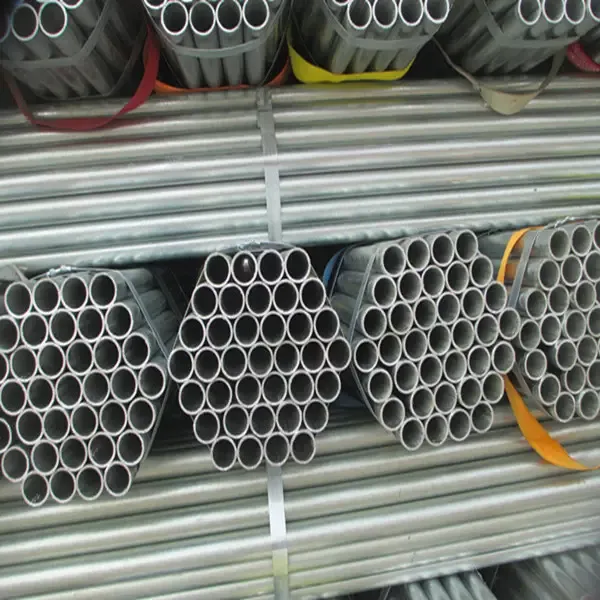

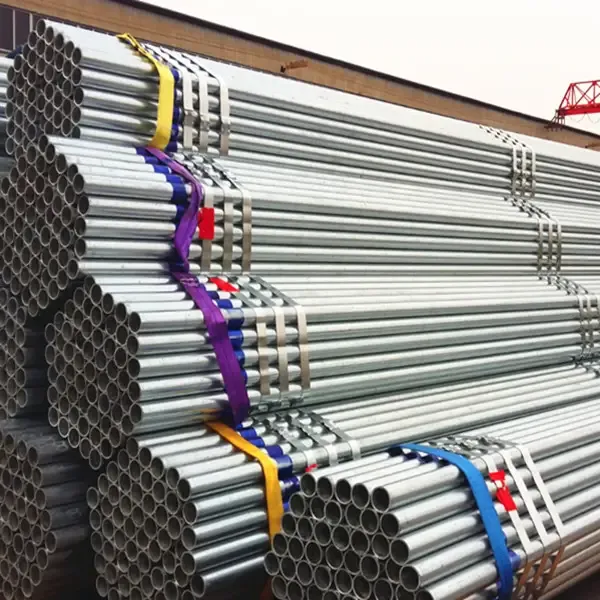

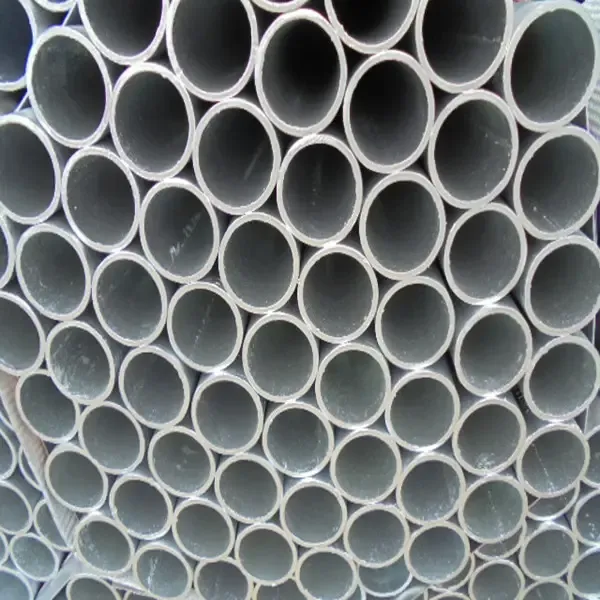

4.0MM Hot Dipped Galvanized Scaffolding Tube

Onward Hot Dipped Galvanized Scaffolding Tube is designed for superior corrosion resistance and long-term performance in harsh construction environments.

Introduction

Onward Hot Dipped Galvanized Scaffolding Tube is designed for superior corrosion resistance and long-term performance in harsh construction environments. The zinc coating provides a protective barrier against rust, making it ideal for outdoor and high-humidity job sites. These tubes are strong, durable, and compliant with international scaffolding standards, ensuring safety and reliability for various structural applications.



Specifications and Parameters:

Pipe Tape

Welded Steel Pipe, Galvanized Tube

Standard

BS EN39: 2001, BS1139

OD

φ48.3mm

Thickness

4.0mm

Weight

4.37kg/m

Length

1m/2m/3m/4m/5m/6m, 1.52m/2.44m/3.05m/3.96m/4.88m/6.4m

Marking

EN39 4.0MM XX(company logo) MM/YY

Zinc Coating

200~280 g/m2(28um~40um)

Material

Q235, Q355

Package

61pcs/bundle

Certificate

SGS, TUV, Third Party Inspection accepted

Production

3000 tons monthly

Delivery

15~20 days



Chemical Compositions



Chemical Compositions (%)

Grade

C

Si

Mn

P

S

Q235

≤0.20

...

≤1.40

≤0.04

≤0.045

Q355

≤0.22

≤0.55

≤1.60

≤0.035

≤0.035



Mechanical Properties



Mechanical Properties

Grade

Tensilestrength (Rm)

(MPa)

Yield strength (ReH)

(MPa)

Elongation after fracture

(A) Lo =5.65 So (%)

Q235

340~520

≥235

≥24

Q355

470~630

≥355

≥20

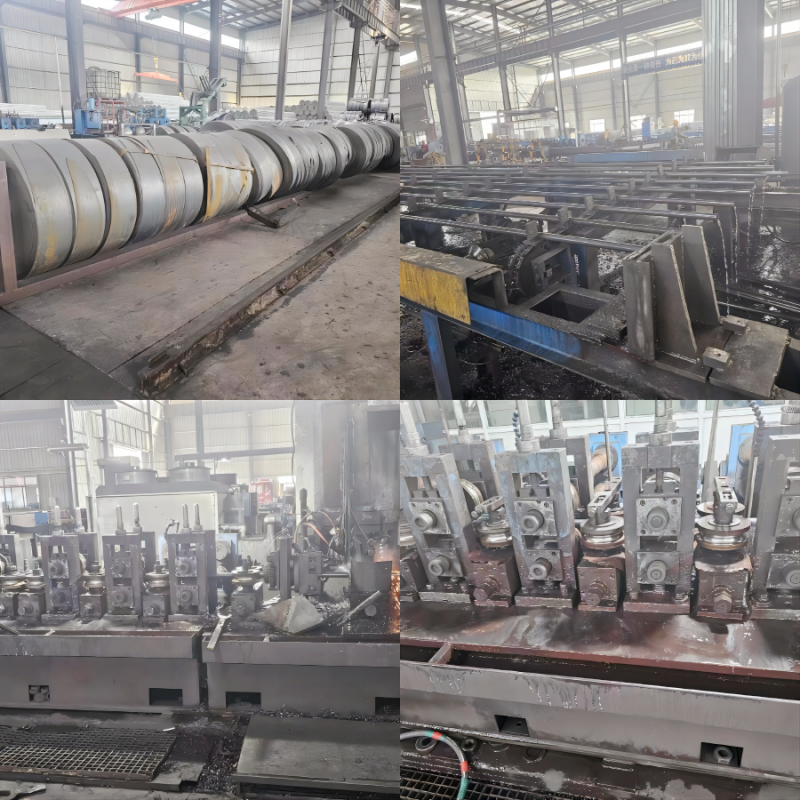

Factory Production

4.0MM Hot Dipped Galvanized Scaffolding Tube factory

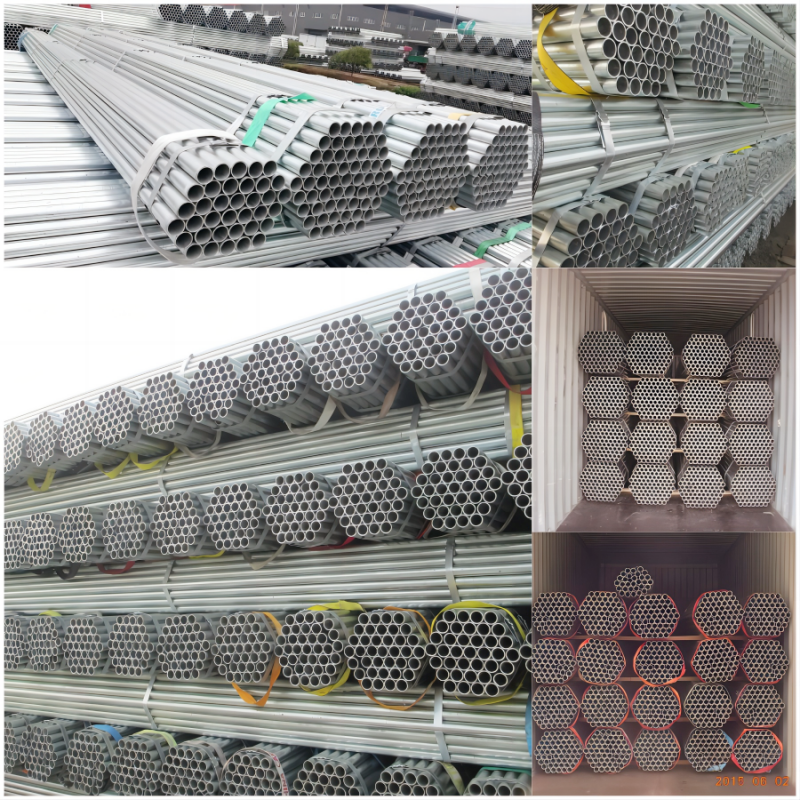

Package

4.0MM Hot Dipped Galvanized Scaffolding Tube details

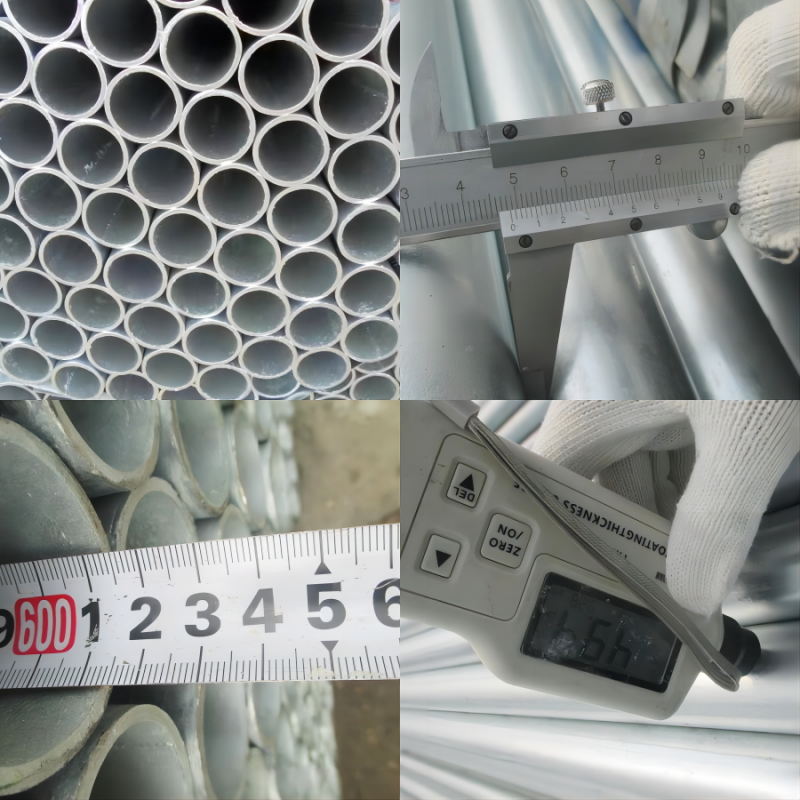

Quality Inspection

4.0MM Hot Dipped Galvanized Scaffolding Tube factory

Frequently Asked Questions (FAQ):

Q: What are Scaffolding Tubes made of?

A: Our scaffolding tubes are made of high-quality galvanised steel.The galvanisation process coats the steel with a protective layer of zinc.This zinc coating acts as a shield against rust and corrosion, making galvanised steel tubes ideal for withstanding harsh weather conditions often encountered on construction sites.This ensures the long-lasting performance and safety of your scaffolding throughout your project.

Q: What are Scaffolding Tubes used for?

A: Scaffolding poles serve as the core element of temporary frameworks, enabling access to elevated areas and bearing loads in construction, renovation, and maintenance tasks. They offer a secure platform for both workers and materials. To learn more, visit our informative blog.

Q: What are the benefits of scaffolding pipes?

A: Sturdy and Durable: Crafted from high-quality galvanized steel, our scaffolding platforms provide a robust foundation for workers and materials. The galvanization process shields against rust and corrosion, ensuring long-term durability for outdoor use.
Adaptable and Customizable: With pre-cut lengths and a range of customization options, our scaffolding can be tailored to fit around any structure, offering safe and easy access to every area.
Efficient and Time-Saving: Standardized diameters and user-friendly couplers facilitate quick assembly and dismantling, reducing downtime and boosting productivity on the job site.
Cost-Effective Solution: The reusability of our scaffolding tubes across multiple projects makes them a wise investment. The initial purchase cost is quickly offset by the savings compared to renting temporary structures.
Versatile and Multipurpose: In addition to construction, our scaffolding tubes can be used to create temporary event structures, support signage and lighting, and provide a sturdy base for various maintenance tasks.
For a deeper dive into the advantages of scaffolding, be sure to check out our informative blog.

Q: Why choose our scaffolding pipes?

A: Our factory in China boasts over 20 production lines, encompassing a wide range of products including scaffolding tube,Scaffolding Couplers,Scaffolding Couplers,Adjustable Steel Prop,frame scaffolding system etc.With our advantageous pricing as a Chinese manufacturer, we are able to offer cost-effective solutions without compromising on quality.Coupled with our efficient production processes, we ensure prompt delivery to support our clients with consistent quality and timely service.The monthly production capacity of our factory stands at around 8000 tons, further enhancing our ability to meet client demands swiftly and reliably.



Contact Us:

Contact us today for a free consultation and quote. Our team is here to assist you every step of the way.

Email: [email protected]

Phone: +86-15111444515, +86-19973126902
