Home > Products > Scaffolding Tube and Couplers > ScaffoldingTube
Specifications and Parameters:
Pipe Tape |
Welded Steel Pipe, Galvanized Tube |
Standard |
BS EN39: 2001, BS1139, BS EN10219 |
OD |
φ48.3mm |
Thickness |
3.2mm |
Weight |
3.56kg/m |
Length |
1m/2m/3m/4m/5m/6m 1.52m/2.44m/3.05m/3.96m/4.88m/6.4m |
Marking |
EN39 3.2MM XX(company logo) MM/YY |
Zinc Coating |
200~280g/㎡(28um~40um) |
Material |
Q235, Q355 (high tensile) |
Package |
61pcs/bundle |
Certificate |
SGS, TUV, Third Party Inspection accepted |
Production |
3000 tons monthly |
Delivery |
15~20 days |
Chemical Compositions
|
Chemical Compositions (%) |
||||
Grade |
C |
Si |
Mn |
P |
S |
Q235 |
≤0.20 |
... |
≤1.40 |
≤0.04 |
≤0.045 |
Q355 |
≤0.22 |
≤0.55 |
≤1.60 |
≤0.035 |
≤0.035 |
Mechanical Properties
|
Mechanical Properties |
||
Grade |
Tensilestrength (Rm) (MPa) |
Yield strength (ReH) (MPa) |
Elongation after fracture (A) Lo =5.65 So (%) |
Q235 |
340~520 |
≥235 |
≥24 |
Q355 |
470~630 |
≥355 |
≥20 |

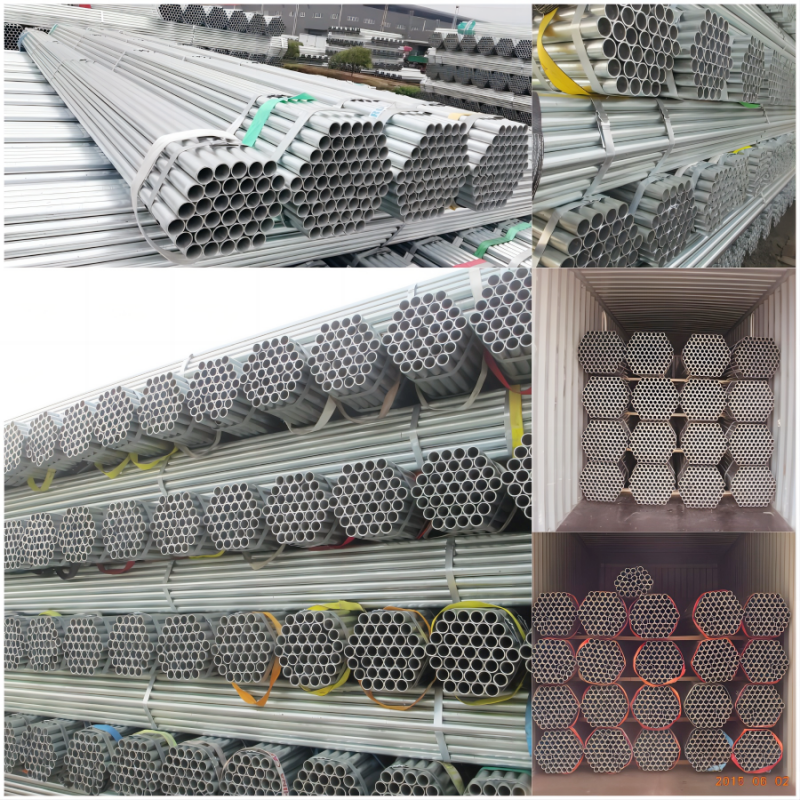

Package

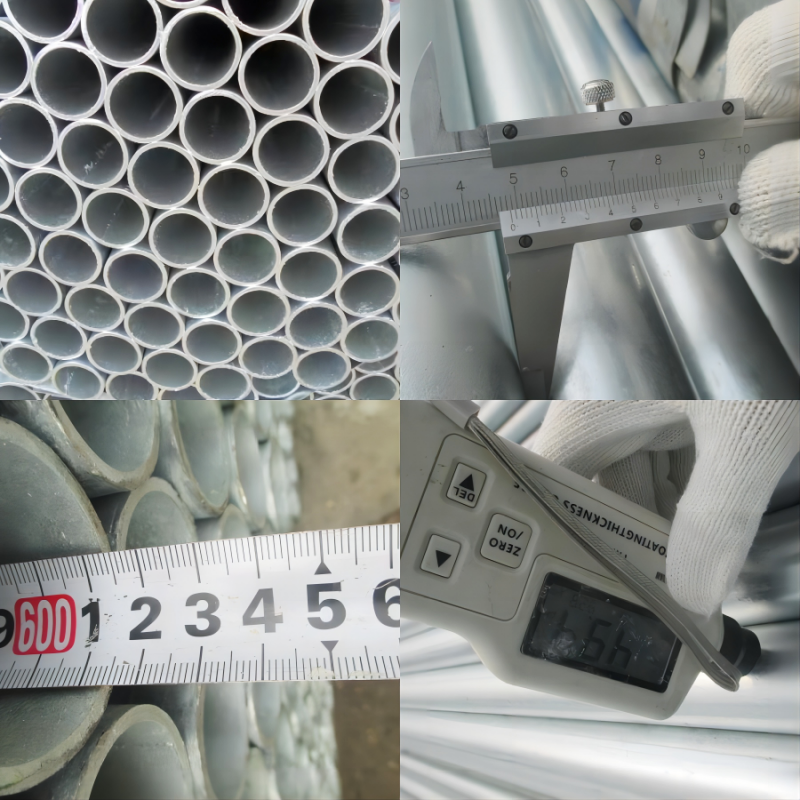

Quality Inspection
Frequently Asked Questions (FAQ):
Q: What is the MOQ ?
A: Normally 1 container. But we accept to mix with other items in 1 full container.
Q: How long it takes for delivery ?
A: The fist batch can be shipped in 7~10 days. Balance depends on order qty.
Q: Can you provide short lengths ?
A: Yes. We do cutting for clients. We normally cut from 5.5~6.5M tubes and optimize the best solution for clients.
Q: Can you put our logo on tubes ?
A: Yes. We can do marking with client’s logo.
Contact Us:
Contact us today for a free consultation and quote. Our team is here to assist you every step of the way.
Email: [email protected]
Whatsapp & Wechat: +86-15111444515, +86-19973126902
